MKI - High Voltage Test Meter Kit with 10GΩ Probe
The DCA High Voltage Test Meter is a digital volt meter that is designed specifically to register and test high voltage DC outputs from the gun tip of electrostatic spray-guns of both paint, powder and electrostatic flocking equipment. The monitoring of gun voltage provides an early warning before failure. The same probe may also be used to check high voltage leakage from powder guns, consoles and HT cables.

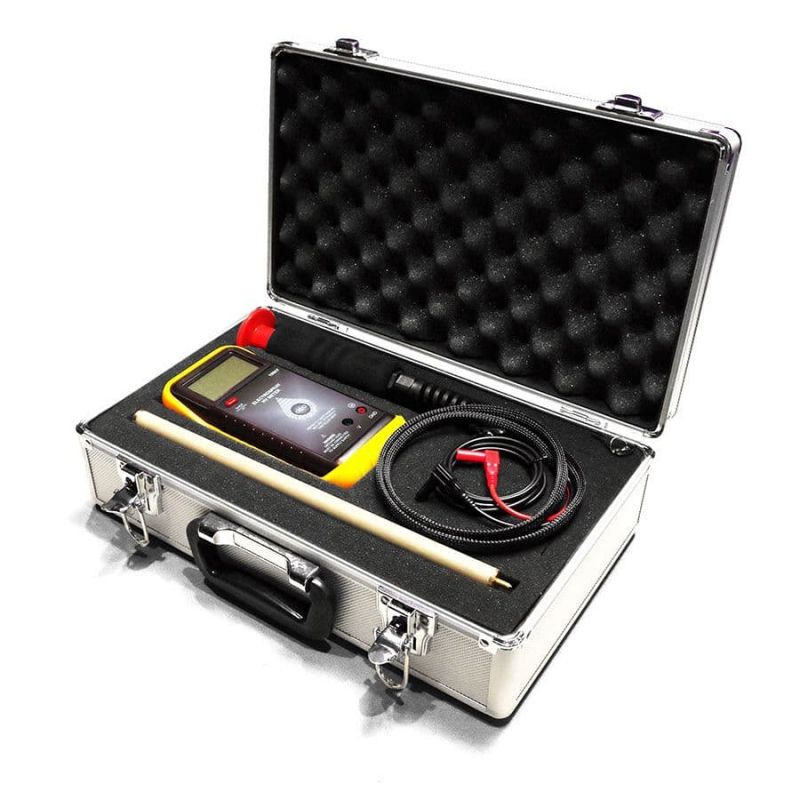

MKII Sprayshop Analyser 10GΩ comes complete with:
- Test Meter
- 10GΩ HT Voltage Probe
- Meter Case
- 2x Key for Meter Case
- Choice of Calibration:
- Uncalibrated
- Calibrated with Certification
- Instruction Manual
The DCA High Voltage Test Meter has a number of various optional probes and spares. Please request information by emailing us at [email protected] or contacting us on 023 8061 3700 if you are interested.
Technical Specification
High Voltage Measurement
Range 1.0KV to 100KV Accuracy ±3%
Resolution 100V
Leakage Resistance
Up to 10GΩ
Type K Thermocouple
Power Supply
9V PP3
Dimensions (WxLxD) 100mm x 200mm x 55mm
Weight 470g (Meter Weight) 2.2kg (Meter Weight inc. Test Case) (Test Case 42 x 27 x 14) |
|
